Cisco Service Module – For Data Networking, Optical NetworkOptical Fiber100 Gigabit Ethernet – 100GBase-X – 100 Gbit/s – 8 x Expansion Slots – CPAK

The Cisco A9K-8X100G-LB-TR is a high-performance line card designed for the Cisco Systems ASR 9000 Series aggregation services routers. Engineered for modern service provider and large enterprise networks, this module delivers eight ports of 100 Gigabit Ethernet connectivity optimized specifically for packet transport applications. It combines scalability, high throughput, and operational efficiency to support the rapidly increasing demand for cloud services, video streaming, mobile backhaul, and data center interconnectivity.

The A9K-8X100G-LB-TR is built to operate in environments where high-capacity transport and low latency are critical. Each of the eight ports supports 100GE connectivity, enabling network operators to consolidate traffic while simplifying infrastructure management. The “LB” designation refers to low-buffer architecture, which is particularly beneficial for latency-sensitive applications such as financial trading platforms, real-time communications, and cloud-based workloads. This design minimizes packet delay while maintaining efficient traffic forwarding under heavy network loads.

One of the defining characteristics of the module is its optimization for packet transport networks. Traditional transport systems relied heavily on SONET/SDH technologies, but modern operators increasingly prefer Ethernet and IP/MPLS-based packet transport solutions. The Cisco A9K-8X100G-LB-TR supports this transition by providing advanced MPLS, segment routing, Quality of Service (QoS), and traffic engineering capabilities. These features allow service providers to deliver reliable, scalable, and differentiated services across converged infrastructures.

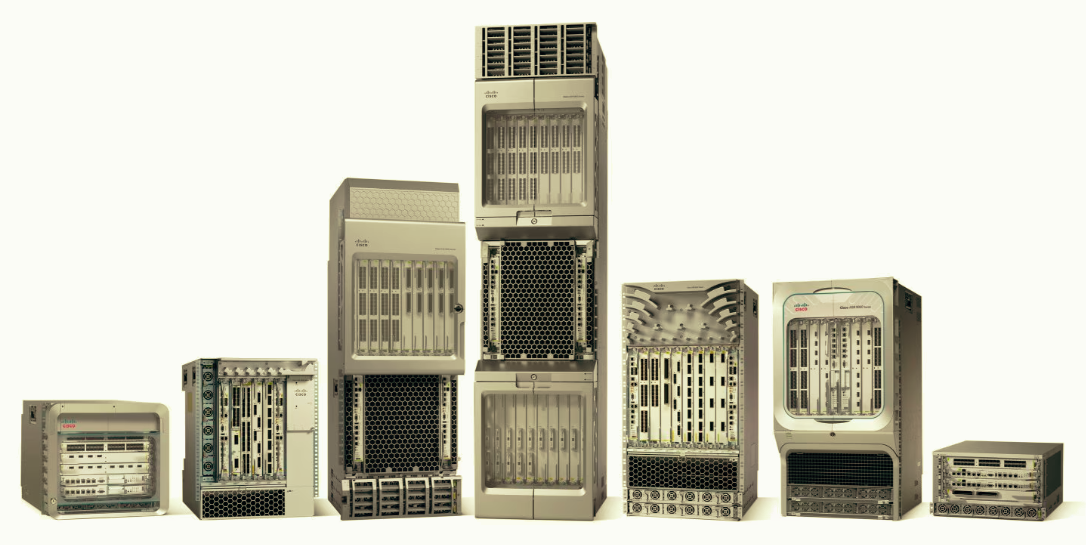

The line card is compatible with Cisco ASR 9000 Series routers, which are widely deployed in carrier-grade environments. It integrates seamlessly with Cisco IOS XR, the operating system designed for high availability and continuous service delivery. IOS XR provides modularity, process isolation, and advanced programmability, enabling operators to automate provisioning and improve operational efficiency. Combined with the hardware capabilities of the A9K-8X100G-LB-TR, organizations can achieve robust network resilience and simplified lifecycle management.

Another significant advantage of the module is energy and space efficiency. By delivering eight 100GE interfaces in a single slot, the card reduces rack space requirements and lowers power consumption compared to deploying multiple lower-density modules. This efficiency is especially valuable in large-scale data centers and telecom facilities where operational costs and physical footprint are major considerations.

Security and reliability are also integral to the design. The card supports carrier-grade redundancy and high-availability features to minimize downtime. Advanced telemetry and monitoring capabilities help network administrators proactively detect congestion, faults, or performance degradation before they affect end users.

In summary, the Cisco A9K-8X100G-LB-TR is a powerful packet transport optimized 100GE line card that addresses the needs of modern high-bandwidth networks. With eight high-speed interfaces, low-latency forwarding, advanced transport features, and seamless integration with the Cisco ASR 9000 ecosystem, it provides service providers and enterprises with a scalable and future-ready solution for next-generation networking environments.
