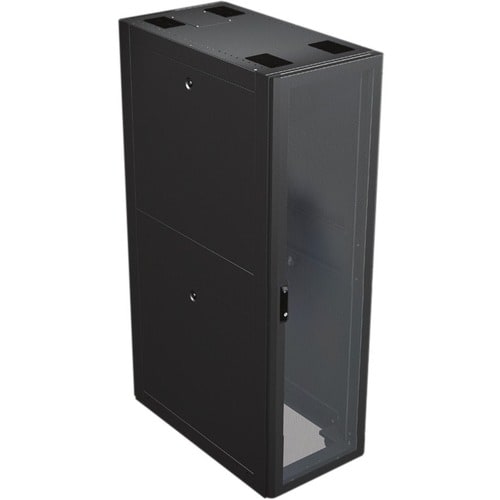

Vertiv E42812 42U server rack cabinet
Original price was: $10,204.53.$5,564.73Current price is: $5,564.73.
Vertiv E42812 42U server rack cabinet
Description
Vertiv E42812 42U server rack cabinet
Physical Dimensions
-
- Rack Height: 42U (2000 mm / 78.74 in).
- Width: 800 mm (31.49 in), designed for standard 19-inch rack-mount equipment with extra side space for cabling.
- Depth: 1200 mm (47.24 in), accommodating deep high-density servers and equipment.
- Net Weight: 473 lbs (214.5 kg).
Key Specifications & Performance
-
- Material & Structural Design: Built with a durable welded 12-gauge steel frame folded five times for enhanced rigidity. It features a professional black powder coat finish (RAL 7021).
- Weight Capacities: Supports a massive static load capacity up to 4000 lbs (1814 kg) and a dynamic load capacity up to 2500 lbs (1134 kg).
- Certifications: Fully compliant with EIA310E, UL2416, BAA/TAA, and IBC2012 standards.
Features & Included Components
According to the official Vertiv E42812 Product Documentation and distributor breakdowns, the core system ships factory-assembled and includes: [1, 2]
-
- Doors: Single perforated locking front door and split perforated locking rear doors. Doors use lift-off, triple-hinge designs and can be field-reversed to switch side hinging.
- Side Panels: Split locking side panels that facilitate easier handling during installation and maintenance.
- Airflow & Cable Management: Outfitted with a tool-less removable High-Density Cable Entry Top Panel. It also includes two full-height rack PDU mounting and cable management brackets utilizing button mounts.
- Mounting Rails: Two pairs of infinitely depth-adjustable 19″ EIA rails featuring pre-marked U-positioning marks.
- Mobility & Setup: Outfitted with low-profile casters, leveling feet accessible directly through the frame, baying brackets for multi-rack nesting, and an installation hardware package.
