Brainboxes ENET TO 8 ANALOGUE IN -30C +80C 20 OFF WITH 1 MANUAL 1 CD ED-549-X20M
Original price was: $8,984.36.$7,185.00Current price is: $7,185.00.
ENET TO 8 ANALOGUE IN -30C +80C 20 OFF WITH 1 MANUAL 1 CD
Description

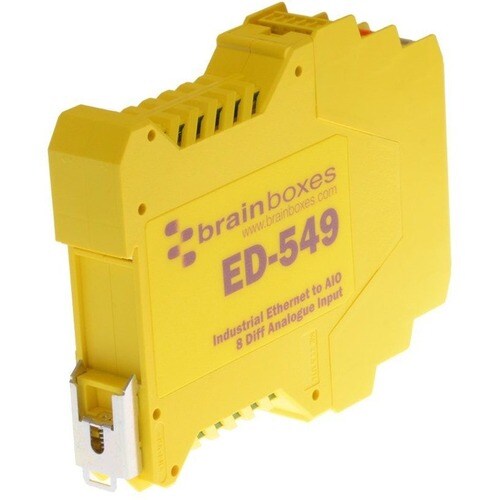

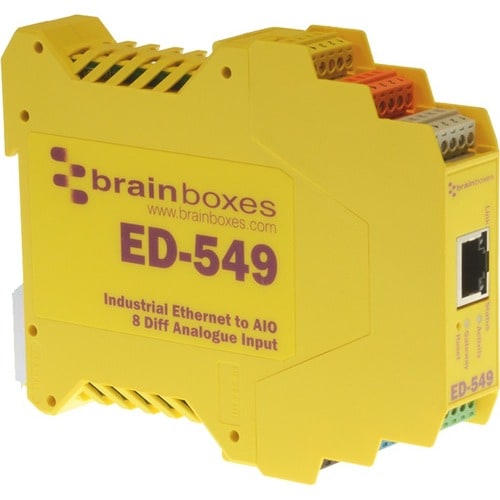

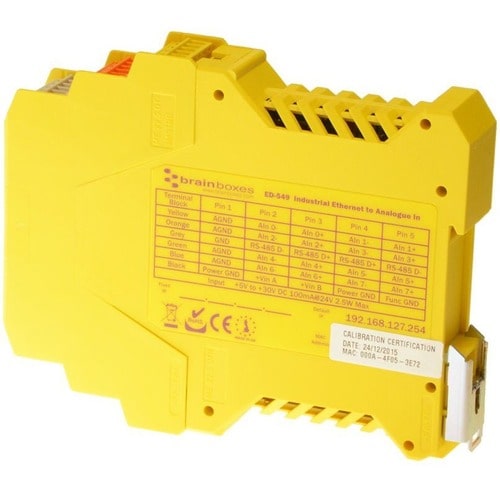

Brainboxes ED-549 Ethernet to Analogue I/O X20 Multipack – Twisted Pair – 1 x Network (RJ-45) – 1 x Serial Port – 10/100Base-TX – Fast Ethernet – Rail-mountable
Features
- 8 Analogue Inputs – Selectable as either current or Voltage
- Supports simple ASCII or industry standard Modbus TCP
- 1 Ethernet Port
- -30°C to +80°C/-22oF to +176oF Temperature range
Tech Specs
| Basic | |
|---|---|
| Product Type | Device Server |
| Form Factor | Rail-mountable |
| Brand Name | Brainboxes |
| Network Standard | 10/100Base-TX |
| Wireless LAN | No |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Serial Port | Yes |
| Media Type Supported | Twisted Pair |
| Number of Serial Ports | 1 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Device Server |
| Manufacturer Part Number | ED-549-X20M |
| Manufacturer Website Address | http://www.brainboxes.com |
| Manufacturer | Brainboxes Limited |
| Product Model | ED-549 |
| Product Name | ED-549 Ethernet to Analogue I/O X20 Multipack |
| Brand Name | Brainboxes |
| Interfaces/Ports | |
| USB | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Parallel Port | No |
| Network (RJ-11) | No |
| Management Port | No |
| Phone Line (RJ-11) | No |
| Number of Serial Ports | 1 |
| PoE (RJ-45) Port | No |
| Centronics Port | No |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United Kingdom |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network & Communication | |
| Network Standard | 10/100Base-TX |
| Ethernet Technology | Fast Ethernet |
| Physical Characteristics | |
| Weight (Approximate) | 4.94 oz |
| Form Factor | Rail-mountable |
| Height | 5″ |
| Width | 0.9″ |
| Depth | 4″ |
| Wireless Specifications | |
| Wireless LAN | No |
