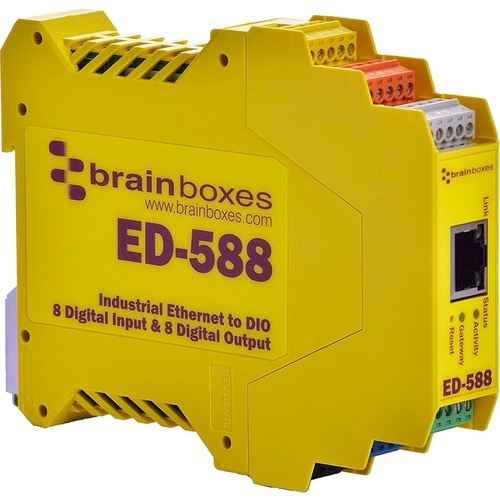

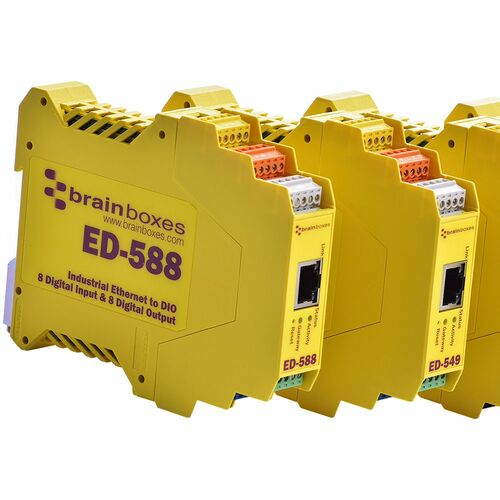

Name: Brainboxes ENET 8DIGITAL INPUTS PLUS 8PK OF 50PRODUCTS 1CD 1MANUAL ED-588-X50M
SKU: ED-588-X50M
Price: 12350.00 USD
Availability: InStock

Description

Brainboxes Ethernet to 8 Digital Inputs and 8 Digital Outputs + RS485 Gateway – 1 x Network (RJ-45) – Fast Ethernet – 10/100Base-T – DC – Rail-mountable

Features

8 Digital Inputs, 8 Digital Outputs and an RS485 Gateway Port
Control any input or output from TTL to high voltage high current industrial devices

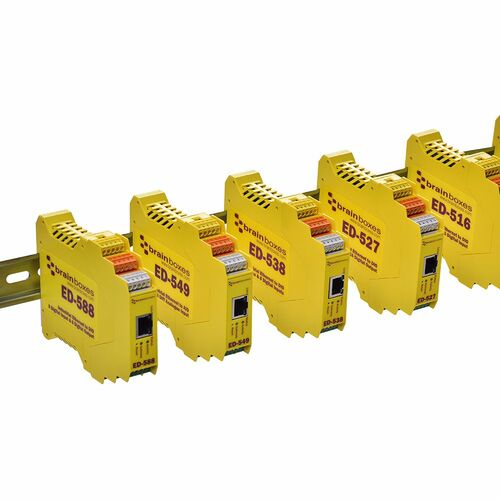

Factory floor process control and automation, Integrated DIN rail mount
Supports simple ASCII or industry standard Modbus TCP
-30°C to +80°C Temperature range
Software APIs for Visual Basic, C# and more

Tech Specs

Basic
Product Type	Transceiver/Media Converter
Power Source	DC
Form Factor	Rail-mountable
Network Technology	10/100Base-T
Brand Name	Brainboxes
Ethernet Technology	Fast Ethernet
USB	No
Number of Network (RJ-45) Ports	1
Network (RJ-45)	Yes
Media Type Supported	Twisted Pair
Total Number of Ports	1
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
General Information
Product Type	Transceiver/Media Converter
Manufacturer Part Number	ED-588-X50M
Manufacturer Website Address	http://www.brainboxes.com
Manufacturer	Brainboxes Limited
Product Model	ED-588
Product Name	Ethernet to 8 Digital Inputs and 8 Digital Outputs + RS485 Gateway
Brand Name	Brainboxes
Interfaces/Ports
USB	No
Number of Network (RJ-45) Ports	1
Network (RJ-45)	Yes
Parallel Port	No
Management Port	No
Total Number of Ports	1
Media & Performance
Media Type Supported	Twisted Pair
Miscellaneous
Additional Information	IO Protocols: Modbus TCP or DCON ASCII (over TCP or Virtual COM port) Watchdog: When device comms is lost, outputs can be set to predetermined state Power On Values: Outputs can be set to predetermined values on power on Safe Values: When Input triggered, outputs can be automatically set to predetermined value Input Logic Level 0: -30.0V to +1.0V Input Logic Level 1: +2.0V to +30V Input Latches: Triggered by user programmable positive or negative edges, stays true until acknowledged Input Counter: User progammable- counts positive or negative transitions up to 200Hz Digital Output Type: Open drain transistor, protected MosFET. Short circuit protection up to 36V. Over temperature shutdown -175°C typical 150°C min Maximum Output Load Voltage: 30 VDC Maximum Output Current Sink: 0.85A per channel Network Protocols: ICMP, IP, TCP, DHCP, HTTP Protection: 1500V Magnetic Isolation between ports and network Max Input 35 Volts Operating Temperature Range: -30 °C to +80 °C / -22 °F to +176 °F Industrial Standard: Yes Storage Temperature: -40 °C to +85 °C / -40 °F to +185 °F Galvanic Isolation: No Operating Systems Microsoft Windows 10 Suitable for any device with a Web Browser Microsoft Windows 8 32 bit & 64 bit Editions Windows Server 2012 Raspberry Pi Android Windows Server 2008 R2 Microsoft Windows 7 32 bit & 64 bit Editions iOS Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000 Linux
Package Contents	Ethernet to 8 Digital Inputs and 8 Digital Outputs + RS485 Gateway Installation CD Including Manual Quick Start Guide
Certifications & Standards	CE CCC-Mark C-Tick
Country of Origin	United Kingdom
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Network & Communication
Network Technology	10/100Base-T
Ethernet Technology	Fast Ethernet
Physical Characteristics
Weight (Approximate)	4.87 oz
Form Factor	Rail-mountable
Height	0.9″
Width	5.1″
Depth	4″
Power Description
Power Source	DC

Brochures
