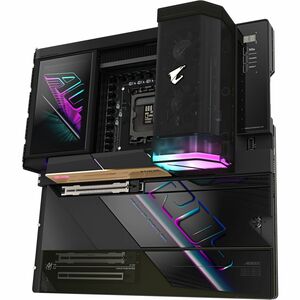

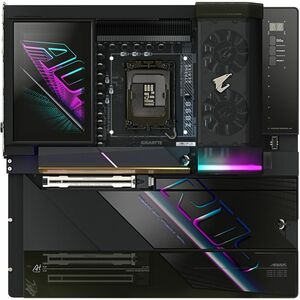

Gigabyte Z890 AORUS XTREME AI TOP GIGABYTE Z890 AORUS XTREME AI TOP Z890AORUSXTREMEAITOP
Original price was: $999.99.$999.00Current price is: $999.00.
Z890 AORUS XTREME AI TOP GIGABYTE Z890 AORUS XTREME AI TOP
Description
GIGABYTE Ultra Durable Z890 A XTREME AI TOP Gaming Desktop Motherboard – Intel Z890 Chipset – Socket LGA-1851 – Extended ATX – Core Ultra Processor Supported – 256 GB DDR5 SDRAM Maximum RAM – DIMM, UDIMM – 4 x Memory Slots – Gigabit Ethernet – 2.5Gigabit Ethernet – IEEE 802.11 a/b/g/n/ac/ax/be – HDMI – DisplayPort – 4 x SATA Interfaces
Features
- Training your own AI on your desk
- Supports Intel® Core Ultra processors (Series 2)
- Digital twin 22+1+2 phases VRM solution
- Ultimate Scalability :
- 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots
- Next-gen Connectivity:
- Dual THUNDERBOLT™ 5 and THUNDERBOLT™ 4 Type-C with DP-Alt
- Blazing Fast Networks:
- Dual 10GbE LAN & Wi-Scalabilityi 7 & directional Ultra-high gain antenna with ARGB
- D5 Bionic Corsa for Infinite Memory Performance
- AORUS AI SNATCH:
- Auto-Overclocking Software by AI models
- AI Perfdrive:
- Provides optimal and customized BIOS preset profile for users
- Premium Compatibility:
- 4*DDR5 with XMP Memory Module Support
- Reinforced Overall Thermal:
- VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL
- DDR Wind Blade XTREME:
- Enhanced Active Cooling for Memory Modules
- DTS:X® Ultra Audio:
- ESS ES9280A DAC and ESS ES9080A with Front ESSential USB DAC Bundled
- WIFI EZ-Plug:
- Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus:
- PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click:
- M.2 heatsinks with screwless design
- Friendly UI:
- Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New
- Power Monitor
- in HWinfo for real-time monitoring on CPU power phases
- Titanium PCIe UD Slot X:
- PCIe 5.0 x16 slot with titanium for ultimate protection of graphics cards
- Ultra Durable PCIe Armor :
- The metal back plate of PCIe x16 slot for enhanced durability
Tech Specs
| Basic | |
|---|---|
| Product Type | Gaming Desktop Motherboard |
| Maximum Memory Supported | 256 GB |
| Form Factor | Extended ATX |
| Processor Supported | Core Ultra |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket LGA-1851 |
| Brand Name | GIGABYTE |
| Memory Technology | DDR5 SDRAM |
| Chipset Manufacturer | Intel |
| Chipset Model | Z890 |
| Number of Memory Slots | 4 |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD Graphics |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 4 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 3 |
| HDMI | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 12 |
| Total Number of Onboard USB Ports | 8 |
| Total Number of PCI Express Slots | 3 |
| Thunderbolt | Yes |
| Memory Form Factor | UDIMM |
| Memory Form Factor | DIMM |
| Total Number of Expansion Slots | 3 |
| 10Gigabit Ethernet | Yes |
| Number of M.2 Interfaces | 4 |
| 2.5Gigabit Ethernet | Yes |
| AI-powered | Yes |
| General Information | |
| Product Type | Gaming Desktop Motherboard |
| Manufacturer Part Number | Z890 AORUS XTREME AI TOP |
| Manufacturer Website Address | http://www.gigabyte.us |
| Manufacturer | GIGABYTE Technology, Inc |
| Product Model | Z890 A XTREME AI TOP |
| Product Name | Ultra Durable Z890 A XTREME AI TOP Gaming Desktop Motherboard |
| Package Type | Retail |
| Product Line | Ultra Durable |
| Brand Name | GIGABYTE |
| I/O Controller | |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| RAID Levels | 5 |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 5.0 |
| Total Number of PCI Express Slots | 3 |
| Total Number of Expansion Slots | 3 |
| Interfaces/Ports | |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version |
|
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Total Number of USB Ports | 12 |
| Thunderbolt | Yes |
| Number of USB 3.2 Gen 2 Type-A Ports | 10 |
| Number of Thunderbolt 4 Ports | 1 |
| Memory | |
| Error Checking | ECC |
| Maximum Memory | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 6000 MHz |
| Memory Speed Supported | 6200 MHz |
| Memory Speed Supported | 6400 MHz |
| Memory Speed Supported | 6600 MHz |
| Memory Speed Supported | 6800 MHz |
| Memory Speed Supported | 7000 MHz |
| Memory Speed Supported | 7200 MHz |
| Memory Speed Supported | 7400 MHz |
| Memory Speed Supported | 7600 MHz |
| Memory Speed Supported | 7800 MHz |
| Memory Speed Supported | 7900 MHz |
| Memory Speed Supported | 7950 MHz |
| Memory Speed Supported | 8000 MHz |
| Memory Speed Supported | 8200 MHz |
| Memory Speed Supported | 8266 MHz |
| Memory Speed Supported | 8400 MHz |
| Memory Speed Supported | 8600 MHz |
| Memory Speed Supported | 8800 MHz |
| Memory Speed Supported | 8933 MHz |
| Memory Speed Supported | 9066 MHz |
| Memory Speed Supported | 9200 MHz |
| Memory Speed Supported | 9333 MHz |
| Memory Speed Supported | 9466 MHz |
| Memory Speed Supported | 5600 MHz |
| Memory Speed Supported | 5800 MHz |
| Miscellaneous | |
| Brand Compatibility | Intel |
| Network & Communication | |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Bluetooth Standard | Bluetooth 5.4 |
| 10Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 8 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 4 |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 12″ |
| Depth | 12″ |
| Processor & Chipset | |
| Processor Supported | Core Ultra |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| Chipset Manufacturer | Intel |
| Chipset Model | Z890 |
| Technical Information | |
| AI-powered | Yes |
| Video | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD Graphics |
| Onboard Video | CPU Dependent Video |
