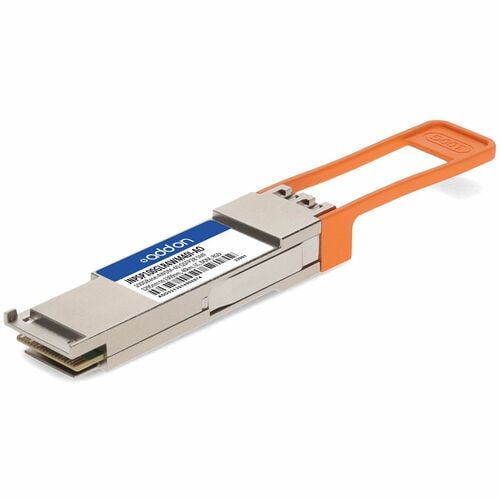

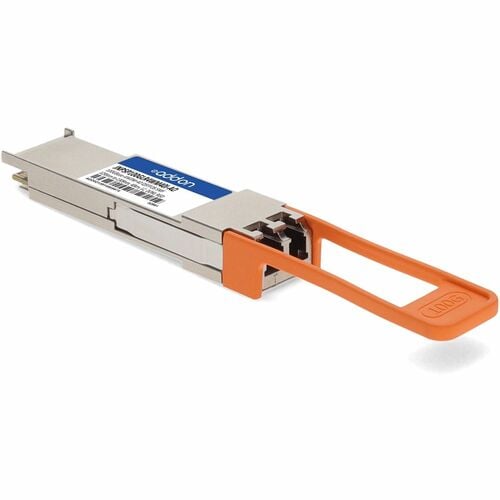

Addon JUNIPER COMP SMF XCVR TAA 100G-4WDM-40 QSFP28 1309NM 40KM JNPSP100GLR4WM40I-AO
Original price was: $21,000.00.$11,603.00Current price is: $11,603.00.
JUNIPER COMP SMF XCVR TAA 100G-4WDM-40 QSFP28 1309NM 40KM
Description
JUNIPER COMP SMF XCVR TAA 100G-4WDM-40 QSFP28 1309NM 40KM
Features
- QSFP28 MSA compliant
- Supports 103Gbps
- Single 3.3V Power Supply and Power dissipation < 5W
- Up to 40km over SMF with FEC on host
- Operating case temperature: -40°C to 85°C
- Four 25Gbps Cooled DFB-based LAN-WDM lasers on transmitter side
- APD and TIA array on the receiver side
- 4x25G electrical interface
- Duplex LC receptacles
- I2C interface with integrated Digital Diagnostic Monitoring
Tech Specs
| Basic | |
|---|---|
| Product Type | QSFP28 |
| Form Factor | Hot-swappable |
| Network Technology | 100GBase-4WDM-40 |
| Brand Name | AddOn |
| Country of Origin | United States/United Kingdom |
| Maximum Data Transfer Rate | 100 Gbit/s |
| Ethernet Technology | 100 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 185°F (85°C) |
| General Information | |
| Product Type | QSFP28 |
| Manufacturer Part Number | JNPSP100GLR4WM40I-AO |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Packaged Quantity | 1 |
| Manufacturer | AddOn |
| Product Name | Juniper Networks QSFP28 Module |
| Brand Name | AddOn |
| Interfaces/Ports | |
| Interfaces/Ports Details | LC 100GBase-4WDM-40 Network |
| Connector Type | LC |
| Media & Performance | |
| Maximum Distance Supported | 40 km |
| Network Technology | 100GBase-4WDM-40 |
| Maximum Data Transfer Rate | 100 Gbit/s |
| Ethernet Technology | 100 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1309 nm |
| Fiber Optic Cable Wavelength | 1295 nm |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | United States/United Kingdom |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 0.20 lb |
| Form Factor | Hot-swappable |
| Height | 0.4″ |
| Width | 0.8″ |
| Depth | 4.9″ |
| Technical Information | |
| Application/Usage | Data Networking |
| Application/Usage | Optical Network |
| Features | Digital Optical Monitoring (DOM) |
