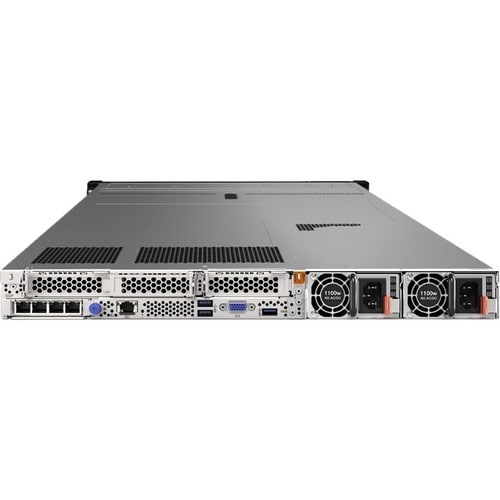

Lenovo THINKSYSTEM SR645 1XAMD EPYC 73F3 16C – 7D2X100BNA
$7,884.05 Original price was: $7,884.05.$6,900.52Current price is: $6,900.52.
Lenovo ThinkSystem SR645 7D2X100BNA 1U Rack Server – 1 EPYC 73F3 3.50 GHz – 32 GB RAM – 1.92 TB SSD – (1 x 1.92TB) SSD Configuration – 12Gb/s SAS Controller – AMD Chip – 2 Processor Support – 8 TB RAM Support – TruDDR4 – 0, 1, 5, 6, 10, 50, 60 RAID Levels – G200 Up to 16 MB Graphic Card – Gigabit Ethernet – 8 x SFF Bay(s) – Hot Swappable Bays – 2 x 1100 W – Redundant Power Supply
Description
Lenovo ThinkSystem SR645 7D2X100BNA 1U Rack Server – 1 EPYC 73F3 3.50 GHz – 32 GB RAM – 1.92 TB SSD – (1 x 1.92TB) SSD Configuration – 12Gb/s SAS Controller – AMD Chip – 2 Processor Support – 8 TB RAM Support – TruDDR4 – 0, 1, 5, 6, 10, 50, 60 RAID Levels – G200 Up to 16 MB Graphic Card – Gigabit Ethernet – 8 x SFF Bay(s) – Hot Swappable Bays – 2 x 1100 W – Redundant Power Supply
Specifications:
Basic
| Product Type |
Server |
| Maximum Memory Supported |
8 TB |
| Standard Memory |
32 GB |
| Chipset |
AMD |
| Form Factor |
Rack |
| Processor Speed |
3.50 GHz |
| Processor Type |
EPYC |
| RAID Levels |
0, 1, 5, 6, 10, 50, 60 |
| Controller Type |
12Gb/s SAS |
| Rack Height |
1U |
| Brand Name |
Lenovo |
| Memory Technology |
TruDDR4 |
| Processor Model |
73F3 |
| Processor Core |
Hexadeca-core (16 Core) |
| Environmentally Friendly |
Yes |
| Redundant Power Supply |
Yes |
| Number of Processors Supported |
2 |
| Number of Processors Installed |
1 |
| RAID Supported |
Yes |
| Ethernet Technology |
Gigabit Ethernet |
| VGA |
Yes |
| Maximum Power Supply Wattage |
1100 W |
| Product Family |
ThinkSystem SR645 |
| Total Solid State Drive Capacity |
1.92 TB |
| Energy Star |
Yes |
| Limited Warranty Duration |
3 Year |
| Total Number of Memory Slots |
32.0 |
| Energy Efficiency Certification |
ENERGY STAR 3.0 |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
Chipset
Controllers
| RAID Levels |
0, 1, 5, 6, 10, 50, 60 |
| Controller Type |
12Gb/s SAS |
| RAID Supported |
Yes |
| Controller Model |
930-8i |
General Information
| Product Type |
Server |
| Manufacturer Part Number |
7D2X100BNA |
| Manufacturer Website Address |
http://www.lenovo.com/us/en/ |
| Manufacturer |
Lenovo Group Limited |
| Product Model |
7D2X100BNA |
| Product Name |
ThinkSystem SR645 7D2X100BNA Server |
| Product Line |
ThinkSystem |
| Product Series |
SR645 |
| Brand Name |
Lenovo |
I/O Expansions
| Number of Internal 2.5″ Bays |
8 |
| Number of Total Expansion Bays |
8 |
| Total Number of Expansion Slots |
2.0 |
| Hot Swappable Bays |
Yes |
| Number of SFF Bays |
8 |
| PCI Express Details |
Slot 1: Low Profile, PCIe 4.0 x16; Slot 2: FHHL, PCIe 4.0 x16 |
Interfaces/Ports
| VGA |
Yes |
| Network (RJ-45) |
Yes |
| Remote Management |
Yes |
| Total Number of USB Ports |
6 |
| Number of USB 2.0 Ports |
1 |
| Number of VGA Ports |
2 |
| Remote Management Controller |
XClarity Controller (XCC) Enterpise |
Memory
| Error Checking |
ECC |
| Maximum Memory |
8 TB |
| Signal Processing |
Registered (Buffered) |
| Standard Memory |
32 GB |
| Memory Technology |
TruDDR4 |
| Number of Occupied Memory Slots |
1 |
| Total Number of Memory Slots |
32.0 |
Miscellaneous
| Package Contents |
- ThinkSystem SR645 7D2X100BNA Server
- Slide Rail Kit
|
| Environmentally Friendly |
Yes |
| Energy Star |
Yes |
| Energy Efficiency Certification |
ENERGY STAR 3.0 |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
Physical Characteristics
| Weight (Approximate) |
44.53 lb |
| Form Factor |
Rack |
| Rack Height |
1U |
| Height |
1.7″ |
| Width |
17.3″ |
| Depth |
30.4″ |
Power Description
| Plug/Connector Type |
C13 |
| Number of Power Supplies Supported |
2 |
| Number of Power Supplies Installed |
2 |
| Redundant Power Supply |
Yes |
| Hot Swappable Power Supply |
Yes |
| Maximum Power Supply Wattage |
1100 W |
Processor
| Processor Type |
EPYC |
| Processor Model |
73F3 |
| Processor Core |
Hexadeca-core (16 Core) |
| Number of Processors Supported |
2 |
| Number of Processors Installed |
1 |
| Processor Generation |
3rd Gen |
Processor & Chipset
| Cache |
256 MB |
| Processor Speed |
3.50 GHz |
| Processor Type |
EPYC |
| Processor Model |
73F3 |
| Processor Core |
Hexadeca-core (16 Core) |
| Chipset Manufacturer |
AMD |
| Number of Processors Supported |
2 |
| Number of Processors Installed |
1 |
| Processor Generation |
3rd Gen |
Storage
| Solid State Drive Configuration |
1 x 1.92TB |
| Total Solid State Drive Capacity |
1.92 TB |
| Number of Solid State Drives |
1 |
Warranty
| Additional Warranty Information |
Three-year customer-replaceable unit and onsite limited warranty with 9×5 next business day (NBD).
|
