Description

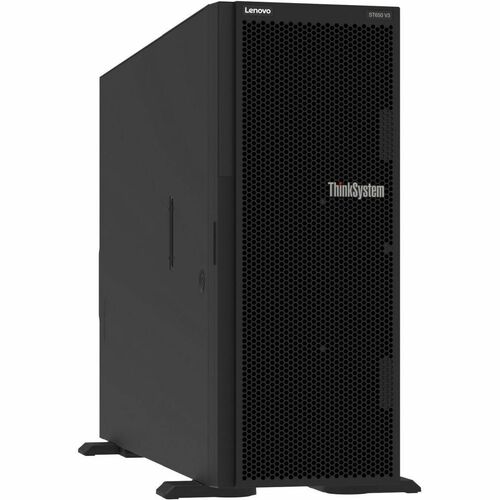

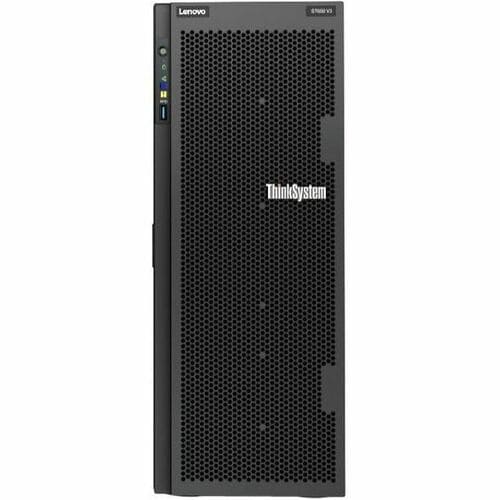

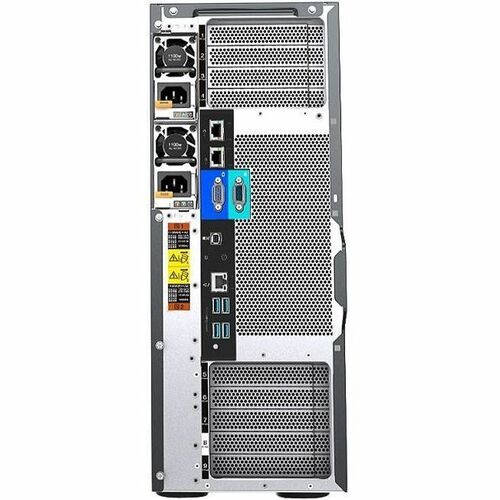

Lenovo ThinkSystem ST650 V3 7D7A1005NA 4U Tower Server – 1 Xeon Silver 4416+ 2 GHz – 32 GB RAM – Serial ATA, 12Gb/s SAS Controller – Intel C741 Chip – 2 Processor Support – 4 TB RAM Support – TruDDR5 – Up to 16 MB Graphic Card – 10 Gigabit Ethernet – 8 x SFF Bay(s) – Hot Swappable Bays – 1 x 750 W
Specifications:
Basic
| Product Type |
Server |
| Maximum Memory Supported |
4 TB |
| Standard Memory |
32 GB |
| Chipset |
Intel C741 |
| Form Factor |
Tower |
| Processor Speed |
2 GHz |
| Processor Type |
Xeon Silver |
| Controller Type |
12Gb/s SAS |
| Rack Height |
4U |
| Brand Name |
Lenovo |
| Memory Technology |
TruDDR5 |
| Processor Model |
4416+ |
| Processor Core |
Icosa-core (20 Core) |
| Environmentally Friendly |
Yes |
| Environmental Certification |
China Environmental Labeling Program (CELP) |
| Number of Processors Supported |
2 |
| Number of Processors Installed |
1 |
| RAID Supported |
Yes |
| Ethernet Technology |
10 Gigabit Ethernet |
| VGA |
Yes |
| Maximum Power Supply Wattage |
750 W |
| Product Family |
ThinkSystem ST650 V3 |
| Energy Star |
Yes |
| Limited Warranty Duration |
3 Year |
| Total Number of Memory Slots |
32.0 |
| Energy Efficiency Certification |
ENERGY STAR 3.0 |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
Chipset
| Chipset Manufacturer |
Intel |
| Chipset Model |
C741 |
Controllers
| Controller Type |
12Gb/s SAS |
| RAID Supported |
Yes |
| Controller Model |
9350-8i |
General Information
| Product Type |
Server |
| Manufacturer Part Number |
7D7A1005NA |
| Manufacturer Website Address |
http://www.lenovo.com/us/en/ |
| Manufacturer |
Lenovo Group Limited |
| Product Model |
7D7A1005NA |
| Product Name |
ThinkSystem ST650 V3 7D7A1005NA Server |
| Product Line |
ThinkSystem |
| Product Series |
ST650 V3 |
| Brand Name |
Lenovo |
I/O Expansions
| Number of External 5.25″ Bays |
2 |
| Number of Internal 2.5″ Bays |
8 |
| Number of Total Expansion Bays |
10 |
| Number of Media Drive Bays |
2 |
| Total Number of Expansion Slots |
9.0 |
| Hot Swappable Bays |
Yes |
| Number of SFF Bays |
8 |
| PCI Express Details |
Up to nine PCIe slots, five of which are PCIe 5.0. |
Interfaces/Ports
| VGA |
Yes |
| Number of Network (RJ-45) Ports |
2 |
| Network (RJ-45) |
Yes |
| Remote Management |
Yes |
| Total Number of USB Ports |
8 |
| Number of USB 2.0 Ports |
1 |
| Number of VGA Ports |
1 |
| Remote Management Controller |
XCC Platinum |
Memory
| Error Checking |
ECC |
| Maximum Memory Supported |
4 TB |
| Signal Processing |
Registered (Buffered) |
| Standard Memory |
32 GB |
| Memory Technology |
TruDDR5 |
| Number of Occupied Memory Slots |
1 |
| Total Number of Memory Slots |
32.0 |
Miscellaneous
| Package Contents |
- ThinkSystem ST650 V3 7D7A1005NA Server
- Power Cord
|
| Environmentally Friendly |
Yes |
| Environmental Certification |
Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| Energy Star |
Yes |
| Energy Efficiency Certification |
ENERGY STAR 3.0 |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
Physical Characteristics
| Weight (Approximate) |
86.20 lb |
| Form Factor |
Tower |
| Rack Height |
4U |
| Height |
18.2″ |
| Width |
6.9″ |
| Depth |
28.9″ |
Power Description
| Plug/Connector Type |
C13 |
| Number of Power Supplies Supported |
2 |
| Number of Power Supplies Installed |
1 |
| Hot Swappable Power Supply |
Yes |
| Maximum Power Supply Wattage |
750 W |
Processor
| Processor Type |
Xeon Silver |
| Processor Model |
4416+ |
| Processor Core |
Icosa-core (20 Core) |
| Number of Processors Supported |
2 |
| Number of Processors Installed |
1 |
| Processor Generation |
4th Gen |
Processor & Chipset
| Cache |
37.50 MB |
| Processor Speed |
2 GHz |
| Processor Type |
Xeon Silver |
| Processor Model |
4416+ |
| Processor Core |
Icosa-core (20 Core) |
| Chipset Manufacturer |
Intel |
| Chipset Model |
C741 |
| Number of Processors Supported |
2 |
| Number of Processors Installed |
1 |
| Processor Generation |
4th Gen |
Warranty
| Additional Warranty Information |
Three-year customer-replaceable unit and onsite limited warranty with 9×5 next business day (NBD).
|
