MSI MEG Z890 UNIFY-X INTEL MOTHERBOARD Z890UNIFYX
$715.00
MEG Z890 UNIFY-X INTEL MOTHERBOARD
Description
MSI MEG Z890 UNIFY-X Gaming Desktop Motherboard – Intel Z890 Chipset – Socket LGA-1851 – ATX – Core Ultra Processor Supported – 128 GB DDR5 SDRAM Maximum RAM – DIMM, UDIMM – 2 x Memory Slots – Gigabit Ethernet – IEEE 802.11 a/b/g/n/ac/ax/be – DisplayPort – 6 x SATA Interfaces
Features
- Extreme DDR5 Memory OC The top-notch R&D design and exclusive 2 DIMM solution for an even clearer DDR5 memory signal to deliver the world class memory performance
- Ultra Power + The ultimate power solution with Direct 20+2+1+1 phases, 110A SPS, and OC Engine unleashes maximum CPU performance.
- Frozr Design Direct Touch Cross Heat-pipe, Aluminum Cover, Double-sided M.2 Shield Frozr, Metal Backplate and Frozr AI software ensure the utmost performance with low temp.
- Dual Thunderbolt™ 4 ports Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant.

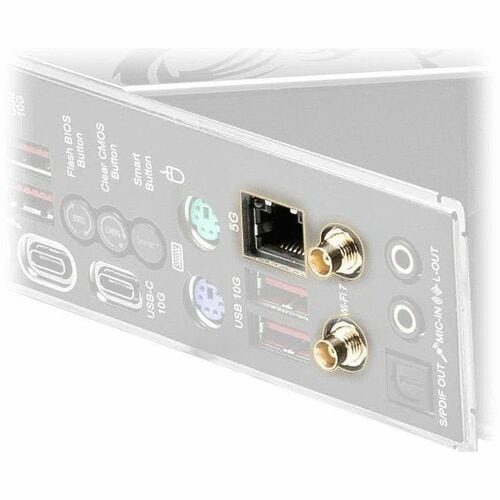

- 5G Network Solution Featuring premium 5G LAN to deliver better network experience
- Wi-Fi 7 The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
- Onboard 6x M.2 Connectors Sextuple M.2 connectors with Lightning Gen 5 solution. Doublesided M.2 Shield Frozr keeps M.2 SSDs safe while preventing throttling, making them run faster.
- EZ M.2 Shield Frozr II The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
- EZ PCIe Release A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
- Lightning Gen 5 The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.

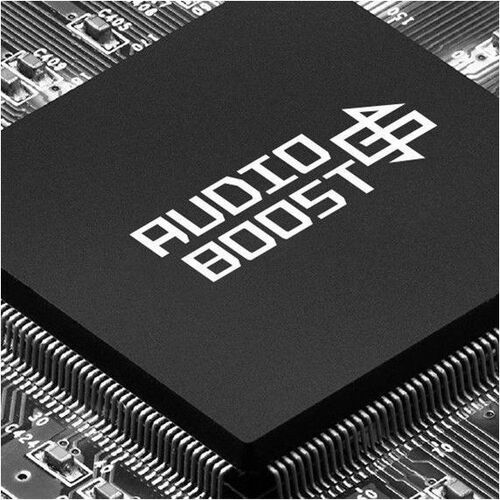

- Audio Boost 5 Isolated audio with a high quality audio processor & amp for the most immersive gaming experience.
Tech Specs
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Basic | |
| Product Type | Gaming Desktop Motherboard |
| Maximum Memory Supported | 128 GB |
| Form Factor | ATX |
| Processor Supported | Core Ultra |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket LGA-1851 |
| Brand Name | MSI |
| Memory Technology | DDR5 SDRAM |
| Chipset Manufacturer | Intel |
| Chipset Model | Z890 |
| Number of Memory Slots | 2 |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 6 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Number of PCI Express x1 Slots | 1 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 3 |
| DisplayPort | Yes |
| Total Number of USB Ports | 10 |
| Total Number of Onboard USB Ports | 9 |
| Total Number of PCI Express Slots | 4 |
| Thunderbolt | Yes |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Total Number of Expansion Slots | 4 |
| Number of M.2 Interfaces | 6 |
| AI-powered | Yes |
| General Information | |
| Product Type | Gaming Desktop Motherboard |
| Manufacturer Part Number | Z890UNIFYX |
| Manufacturer Website Address | http://www.msi.com |
| Manufacturer | MSI |
| Product Model | Z890 UNIFY-X |
| Product Name | MEG Z890 UNIFY-X Gaming Desktop Motherboard |
| Product Line | MEG |
| Brand Name | MSI |
| I/O Controller | |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express Standard | PCI Express 4.0 |
| Total Number of PCI Express Slots | 4 |
| Total Number of Expansion Slots | 4 |
| Interfaces/Ports | |
| S/PDIF | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 10 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Memory | |
| Maximum Memory | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 6400 MHz |
| Memory Speed Supported | 7200 MHz |
| Memory Speed Supported | 9600 MHz |
| Miscellaneous | |
| Brand Compatibility | Intel |
| Network & Communication | |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Bluetooth Standard | Bluetooth 5.4 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 6 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12″ |
| Depth | 9.6″ |
| Processor & Chipset | |
| Processor Supported | Core Ultra |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| Chipset Manufacturer | Intel |
| Chipset Model | Z890 |
| Technical Information | |
| AI-powered | Yes |
| Video | |
| Onboard Video | CPU Dependent Video |
