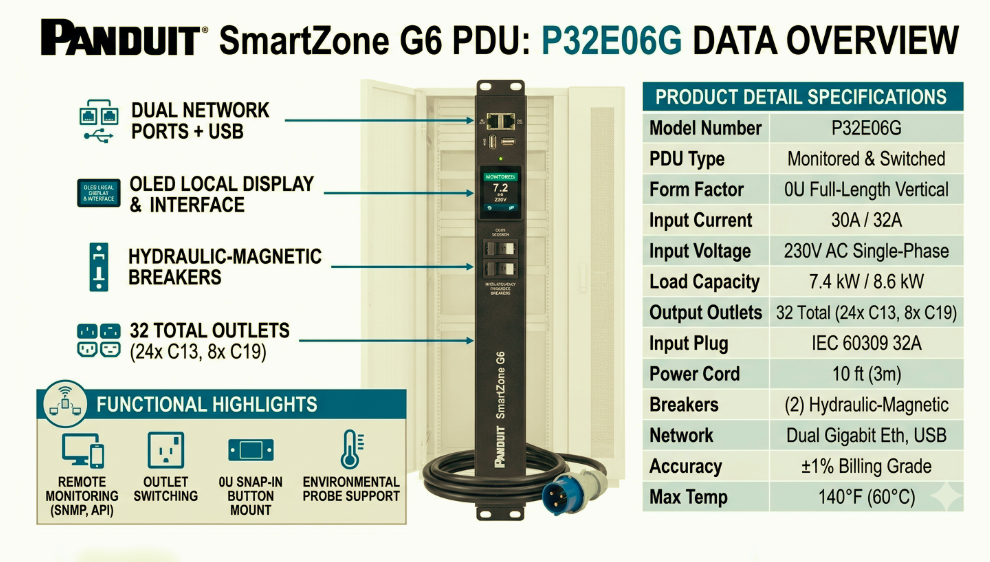

Panduit G6 MS PDU 32A/30A (24)C13(8)C19 IP44-3M BLK PK1 P32E06G
Original price was: $2,943.37.$2,279.00Current price is: $2,279.00.
G6 MS PDU 32A/30A (24)C13(8)C19 IP44-3M BLK PK1
Description
Panduit G6 MS PDU, 32A/30A, (24)C13, (8)C19, IEC 60309 2P+N 6h – Monitored, Switched – IEC 60309 2P+E 6h 32A (IP44) – 24 x IEC 60320 C13, 8 x IEC 60320 C19 – 230 V – Network (RJ-45) – Vertical
Features
- PDU provides power control as remote controlled relay & load monitoring
- With monitored PDU, you can remotely monitor single-or three-phase voltage easily
- IEC 60320 C13/C19 receptacle type to ensure maximum dependability and optimal performance
- Single Phase phase PDU provides dependable power output with maximum efficiency
- IEC 60309 2P+E 6h 32A (IP44) plug/connector type for better, dependable connectivity and desired power output
- 230 V input voltage for better reliance and maximum dependability
- 230 V AC output voltage for maximum dependability and added productivity
Tech Specs
| Basic | |
|---|---|
| Product Type | PDU |
| Input Voltage | 230 V |
| Output Voltage | 230 V AC |
| Input Current | 32 A |
| Brand Name | Panduit |
| Plug/Connector Type | IEC 60309 2P+E 6h 32A (IP44) |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13/C19 |
| Product Family | G6 |
| PDU Type | Monitored |
| PDU Type | Switched |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| Receptacle Detail | 8 x IEC 60320 C19 |
| Receptacle Detail | 24 x IEC 60320 C13 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Conditions | |
| Minimum Operating Temperature | 50°F (10°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 24.8°F (-4°C) |
| Maximum Storage Temperature | 284°F (140°C) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | P32E06G |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 Piece |
| Manufacturer | PANDUIT CORP |
| Product Name | G6 MS PDU, 32A/30A, (24)C13, (8)C19, IEC 60309 2P+N 6h |
| Product Series | G6 |
| Brand Name | Panduit |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Physical Characteristics | |
| Height | 69″ |
| Width | 2″ |
| Depth | 2.1″ |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| Product Material | Metal |
| Power Description | |
| Input Voltage | 230 V |
| Output Voltage | 230 V AC |
| Input Current | 32 A |
| Technical Information | |
| Plug/Connector Type | IEC 60309 2P+E 6h 32A (IP44) |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13/C19 |
| PDU Type | Switched |
| PDU Type | Monitored |
| Receptacle Detail | 8 x IEC 60320 C19 |
| Receptacle Detail | 24 x IEC 60320 C13 |
