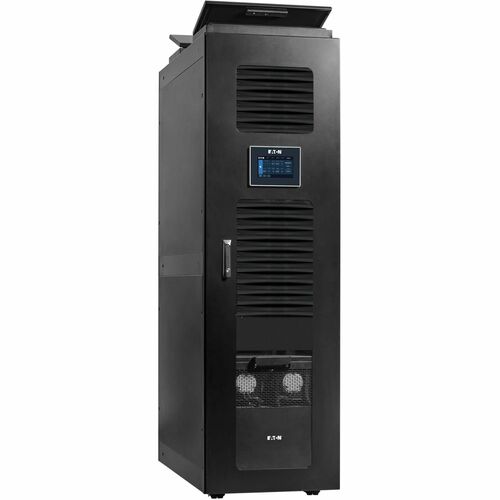

Eaton SELF-COOLING 42U RACK ENCLOSURE 5.5 KW COOLING UNIT 208V 60HZ SRCOOL5KWRM42U
Original price was: $36,162.38.$20,972.00Current price is: $20,972.00.
SELF-COOLING 42U RACK ENCLOSURE 5.5 KW COOLING UNIT 208V 60HZ
Description
Eaton SmartRack Self-Cooling 42U Server Rack Enclosure with Single-Phase 5.5 kW (18,766 BTU) Cooling Unit, 208V, 60 Hz – For Server, IT Equipment, Equipment Rack, LAN Switch, PDU, UPS, Patch Panel – 42U Rack Height42.95″” Rack Depth – Rack-mountable Enclosed Cabinet – Black – Steel – 3000 lb Static/Stationary Weight Capacity
Features
- 5.5kW (18.7 kBTU/hr) self-cooling rack ideal for server rooms and edge computing installations
- One-box solution: no HVAC professional required to connect separate condenser and refrigerant tubing

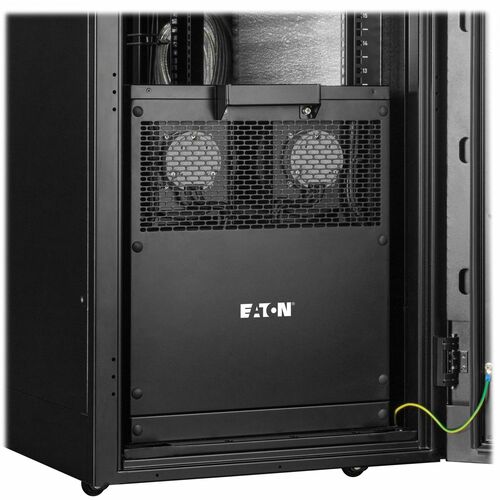

- Rack-mount cooling unit preinstalled at the bottom of a custom insulated 42U deep rack
- Built-in network management (SNMP) card enables full remote monitoring and control 24/7
- Intuitive 7-inch color touchscreen allows easy commissioning and diagnostics
- Self-contained, close-coupled cooling unit with single-phase 208V input power
- Rack includes pre-installed 1U blanks that optimize cold air flow though IT equipment only
Tech Specs
| Basic | |
|---|---|
| Application/Usage | Equipment Rack |
| Application/Usage | IT Equipment |
| Application/Usage | LAN Switch |
| Application/Usage | Patch Panel |
| Application/Usage | PDU |
| Application/Usage | UPS |
| Application/Usage | Server |
| Application/Usage | Switch |
| Product Type | Rack Cabinet |
| Weight (Approximate) | 552.26 lb |
| Features | Lockable Rear Door |
| Features | Rear Door |
| Features | Tamper Resistant |
| Features | Cable Management |
| Features | Casters |
| Features | Damage Resistant |
| Features | Front Door |
| Features | Key Lock |
| Features | Lockable |
| Form Factor | Rack-mountable |
| Rack Height | 42U |
| Brand Name | Eaton |
| Country of Origin | China |
| Assembly Required | No |
| Height | 82.7″ |
| Width | 23.6″ |
| Depth | 47.3″ |
| Product Family | SmartRack |
| Rack Depth | 42.95″ |
| Product Color | Black |
| Color Family | Black |
| Rack Type | Enclosed Cabinet |
| Product Material | Copper |
| Product Material | Acrylic |
| Product Material | Steel |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Rack Cabinet |
| Manufacturer Part Number | SRCOOL5KWRM42U |
| Manufacturer Website Address | http://www.eaton.com |
| Manufacturer | Eaton Corporation |
| Product Model | SRCOOL5KWRM42U |
| Product Name | SmartRack SRCOOL5KWRM42U Rack Cabinet |
| Product Line | SmartRack |
| Brand Name | Eaton |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Assembly Required | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 552.26 lb |
| Form Factor | Rack-mountable |
| Rack Height | 42U |
| Height | 82.7″ |
| Width | 23.6″ |
| Depth | 47.3″ |
| Static/Stationary Weight Capacity | 3000 lb |
| Rack Depth | 42.95″ |
| Product Color | Black |
| Color Family | Black |
| Product Material | Steel |
| Product Material | Copper |
| Product Material | Acrylic |
| Power Description | |
| Plug/Connector Type | NEMA L6-30P |
| Maximum Power Supply Wattage | 5500 W |
| Technical Information | |
| Application/Usage | PDU |
| Application/Usage | Server |
| Application/Usage | Patch Panel |
| Application/Usage | UPS |
| Application/Usage | Switch |
| Application/Usage | Equipment Rack |
| Application/Usage | IT Equipment |
| Application/Usage | LAN Switch |
| Ventilation | Yes |
| Features | Lockable |
| Features | Lockable Rear Door |
| Features | Rear Door |
| Features | Key Lock |
| Features | Tamper Resistant |
| Features | Cable Management |
| Features | Casters |
| Features | Damage Resistant |
| Features | Front Door |
| Rack Type | Enclosed Cabinet |
