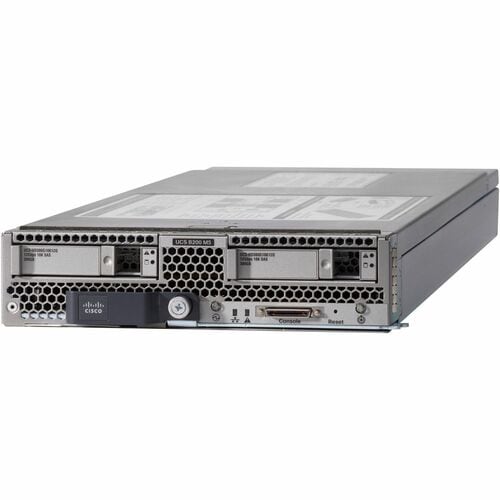

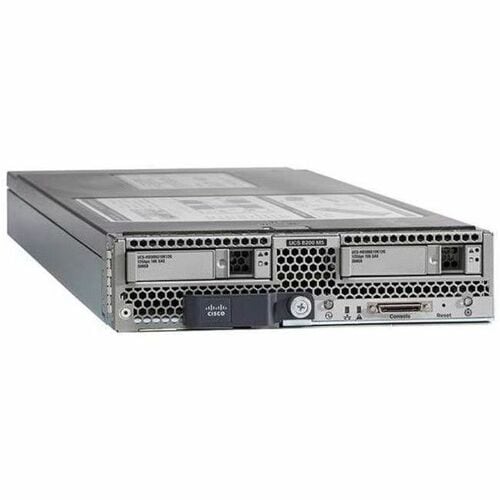

Cisco SP B200 M5 W/2X6130 6X32GB MEM VIC1340 UCS-SP-B200M5-C1T
Original price was: $27,830.92.$11,994.00Current price is: $11,994.00.
SP B200 M5 W/2X6130 6X32GB MEM VIC1340
Description
Cisco B200 M5 Blade Server – 2 Xeon Gold 6130 2.10 GHz – 192 GB RAM – Intel Chip – 2 Processor Support – 3 TB RAM Support – DDR4 SDRAM – 40 Gigabit Ethernet – 2 x Total Bay(s) – 2 x SFF Bay(s) – Hot Swappable Bays – Intel Optane Memory Ready
Features
- Up to two 2nd Gen Intel Xeon Scalable and Intel Xeon Scalable processors with up to 28 cores per CPU
- 24 DIMM slots for industry-standard DDR4 memory at speeds up to 2933 MHz, with up to 3 TB of total memory when using 128-GB DIMMs. Up to 12 DIMM slots ready for Intel Optane DC Persistent Memory to accommodate up to 6 TB of Intel Optane DC Persistent Memory
- Modular LAN on Motherboard (mLOM) card with Cisco UCS Virtual Interface Card (VIC) 1440 or 1340, a 2-port, 40-Gigabit Ethernet (GE), Fibre Channel over Ethernet (FCoE)-capable mLOM mezzanine adapter
- Optional rear mezzanine VIC with two 40-Gbps unified I/O ports or two sets of 4 x 10-Gbps unified I/O ports, delivering 80 Gbps to the server; adapts to either 10- or 40-Gbps fabric connections
- Two optional, hot-pluggable, Hard Disk Drives (HDDs), Solid-State Drives (SSDs), or Nonvolatile Memory Express (NVMe) 2.5-inch drives with a choice of enterprise-class Redundant Array of Independent Disks (RAID) or pass-through controllers
- Support for Optional SD Card or M.2 SATA drives for flexible boot and local storage capabilities
- Support for up to 2 optional GPUs
- Support for one rear storage mezzanine card
- Support for one 16-GB internal flash USB drive
Tech Specs
| Basic | |
|---|---|
| Product Type | Server |
| Maximum Memory Supported | 3 TB |
| Standard Memory | 192 GB |
| Chipset | Intel |
| Form Factor | Blade |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Gold |
| Brand Name | Cisco |
| Memory Technology | DDR4 SDRAM |
| Processor Model | 6130 |
| Processor Core | Hexadeca-core (16 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Ethernet Technology | 40 Gigabit Ethernet |
| Product Family | B200 M5 |
| Limited Warranty Duration | 3 Year |
| Total Number of Memory Slots | 24 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Chipset | |
| Chipset Manufacturer | Intel |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | UCS-SP-B200M5-C1T |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS B200 M5 Server |
| Product Series | B200 M5 |
| Brand Name | Cisco |
| I/O Expansions | |
| Number of Internal 2.5″ Bays | 2 |
| Number of Total Expansion Bays | 2 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 2 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 1 |
| Number of USB 3.0 Ports | 1 |
| Memory | |
| Maximum Memory | 3 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 192 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Occupied Memory Slots | 6 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 2.67 GHz |
| Total Number of Memory Slots | 24 |
| Miscellaneous | |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Network & Communication | |
| Ethernet Technology | 40 Gigabit Ethernet |
| Physical Characteristics | |
| Weight (Approximate) | 9.50 lb |
| Form Factor | Blade |
| Height | 2″ |
| Width | 8″ |
| Depth | 24.4″ |
| Processor | |
| Cache | 22 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Gold |
| Processor Model | 6130 |
| Processor Core | Hexadeca-core (16 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Generation | 2nd Gen |
| Processor & Chipset | |
| Cache | 22 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Gold |
| Processor Model | 6130 |
| Processor Core | Hexadeca-core (16 Core) |
| Chipset Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Generation | 2nd Gen |
| Warranty | |
| Additional Warranty Information |
Servers have a 3-year Next-Business-Day (NBD) hardware warranty and 90-day software warranty. |
