Vertiv RPDU MONITORED UNIT LEVEL EC 22.0KW VARIABLE POWER CONFIGURATIO VP4UV0A2
Original price was: $2,399.00.$1,523.00Current price is: $1,523.00.
RPDU MONITORED UNIT LEVEL EC 22.0KW VARIABLE POWER CONFIGURATIO
Description
Vertiv Geist Universal Rack PDU with Next-Generation IMD| 32A-63A| 22kW Power Capacity| 208V-415V| (30) Combination C13/C19 outlets | VP4UV0A2 – Redundant Power-Sharing Port | High-Visibility LCD | Internal Orientation Sensor | Security Enhanced | Interchangeable Monitoring Device | Dual Listed (UL/CE) | TAA-Compliant | RoHS Certified | 3-Year Warranty Which Extends to 5-Year Warranty if Registered Within 120 Days of Purchase
Features
- The VP4UV0A2 UPDU supports 32A-63A and 208V-415V of power in both 1Phase and 3Phase configurations
- The U-Lock outlets help lessen the risk of downtime caused by accidental cord disconnection

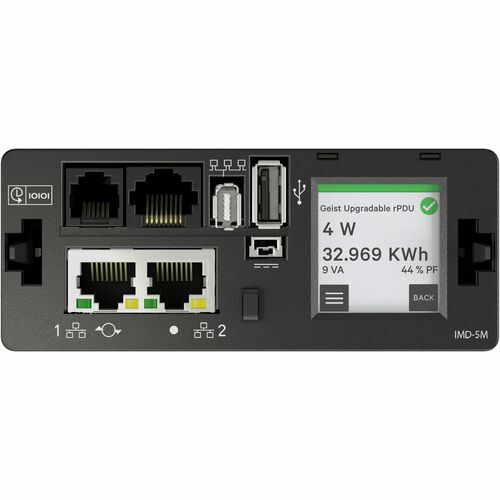

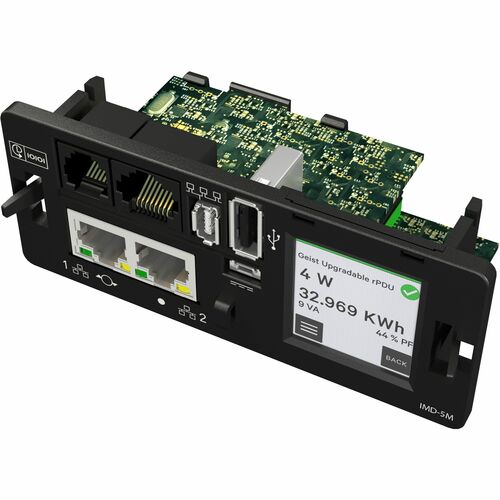

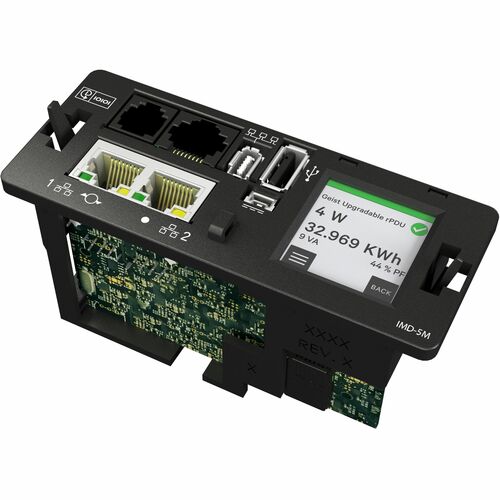

- Vertiv Geist Next-Generation IMD has a 128×128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, Dual Listed (UL/CE), TAA-Compliant, and RoHS certified
Tech Specs
| Basic | |
|---|---|
| Product Type | PDU |
| Input Voltage | 230 V AC |
| Input Voltage | 415 V AC |
| Features | Touch Screen Display |
| Input Current | 63 A |
| Length | 66.3″ |
| Mount Type | Rack-mountable |
| Protection Type | Overcurrent Protection |
| Rack Height | 0U |
| Brand Name | Vertiv Geist |
| Plug/Connector Type | Universal Input |
| Phase | Single Phase/Three Phase |
| Receptacle Type | Combination C13/C19 |
| Product Family | Geist Upgradeable |
| TAA Compliant | Yes |
| Energy Star | No |
| PDU Type | Monitored |
| Remote Outlet Switching | No |
| Mounting Orientation | Vertical |
| Power Rating (Watt) | 22 kW |
| Product Color | Black |
| Color Family | Black |
| Locking Receptacles | Ulock |
| Receptacle Detail | 30 x Combination C13/C19 |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | VP4UV0A2 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | DU03E4B1-30CF17-2S02A9K00-S-A |
| Product Name | GU VP4UU0A1 UPDU |
| Product Line | Geist Upgradeable |
| Brand Name | Vertiv Geist |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | No |
| Serial Port | Yes |
| Modem (RJ-12) | Yes |
| Modem (RJ-22) | No |
| Management | |
| Management |
|
| Remote Outlet Switching | No |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Energy Star | No |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 21 lb |
| Length | 66.3″ |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2″ |
| Depth | 2.5″ |
| Number of Cord/Cable | 1 |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Input Voltage | 415 V AC |
| Input Current | 63 A |
| Power Rating (Watt) | 22 kW |
| Technical Information | |
| Features | Touch Screen Display |
| Protection Type | Overcurrent Protection |
| Plug/Connector Type | Universal Input |
| Phase | Single Phase/Three Phase |
| Receptacle Type | Combination C13/C19 |
| PDU Type | Monitored |
| Locking Receptacles | Ulock |
| Receptacle Detail | 30 x Combination C13/C19 |
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
