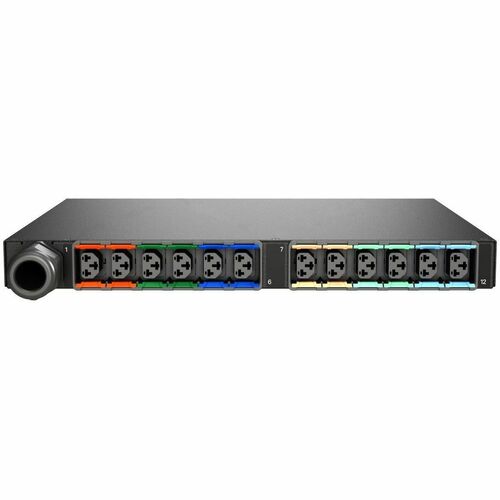

Vertiv RPDU SWITCHED UNIT LV MONITORING EC 30A 240/415V WYE VP5N31A4
Original price was: $2,443.00.$1,549.00Current price is: $1,549.00.
RPDU SWITCHED UNIT LV MONITORING EC 30A 240/415V WYE
Description
Vertiv Geist rPDU MNS5M1R6-12CF13-3TL56A0H10-S 12-Outlets PDU – Switched – NEMA L22-30P – 12 x Combination C13/C19 – 230 V AC – Overcurrent Protection, Single Pole – Network (RJ-45) – 10 ft Cord Length – Horizontal – Rack-mountable – TAA Compliant
Features
- A device fitted with multiple outputs for the distribution of electric power
- With a built-in digital current meter avoid potential overloads via switched PDUs
- Combination C13/C19 receptacle type to ensure maximum usability and reliable power output
- Three Phase phase PDU provides optimal power output with added usability
- NEMA L22-30P plug/connector type for efficient connectivity and feasible power output
- 230 V AC input voltage for better reliance and maximum dependability
- 240 V AC output voltage for better reliance and maximum usability
Tech Specs
| Basic | |
|---|---|
| Product Type | PDU |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Features | LED Display |
| Features | Touch Screen Display |
| Input Current | 30 A |
| Mount Type | Rack-mountable |
| Protection Type | Overcurrent Protection |
| Protection Type | Single Pole |
| Brand Name | Vertiv Geist |
| Plug/Connector Type | NEMA L22-30P |
| Input Voltage Range | 346 V AC – 415 V AC |
| Input Voltage Range | 200 V AC – 240 V AC |
| Cord Length | 10 ft |
| Phase | Three Phase |
| Receptacle Type | Combination C13/C19 |
| Product Family | rPDU |
| TAA Compliant | Yes |
| PDU Type | Switched |
| Remote Outlet Switching | Yes |
| Mounting Orientation | Horizontal |
| Power Rating (Watt) | 17.20 kW |
| Product Color | Black Powder Coat |
| Receptacle Detail | 12 x Combination C13/C19 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | VP5N31A4 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MNS5M1R6-12CF13-3TL56A0H10-S |
| Product Name | rPDU MNS5M1R6-12CF13-3TL56A0H10-S 12-Outlets PDU |
| Product Series | rPDU |
| Brand Name | Vertiv Geist |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Remote Outlet Switching | Yes |
| Miscellaneous | |
| Application/Usage | IT Equipment |
| Certifications & Standards |
|
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Cord Length | 10 ft |
| Height | 1.7″ |
| Width | 17″ |
| Depth | 12″ |
| Mounting Orientation | Horizontal |
| Product Color | Black Powder Coat |
| Color Family | Black |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Input Current | 30 A |
| Input Voltage Range | 200 V AC – 240 V AC |
| Input Voltage Range | 346 V AC – 415 V AC |
| Input Frequency | 60 Hz |
| Power Rating (Watt) | 17.20 kW |
| Technical Information | |
| Features | LED Display |
| Features | Touch Screen Display |
| Protection Type | Overcurrent Protection |
| Protection Type | Single Pole |
| Plug/Connector Type | NEMA L22-30P |
| Phase | Three Phase |
| Receptacle Type | Combination C13/C19 |
| Load Capacity (Watt) | 17.20 kW |
| PDU Type | Switched |
| Receptacle Detail | 12 x Combination C13/C19 |
| Plug/Connector Detail | 1 x NEMA L22-30P |
| Warranty | |
| Additional Warranty Information |
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
