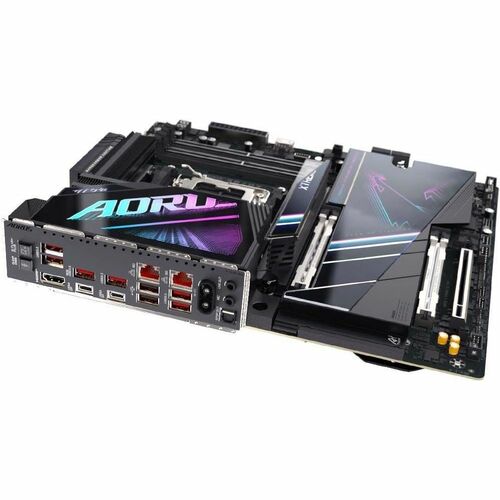

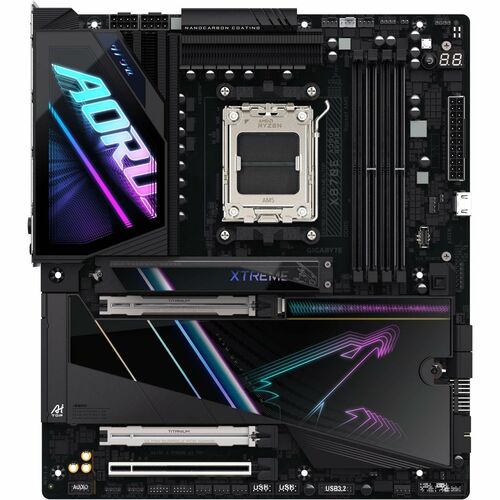

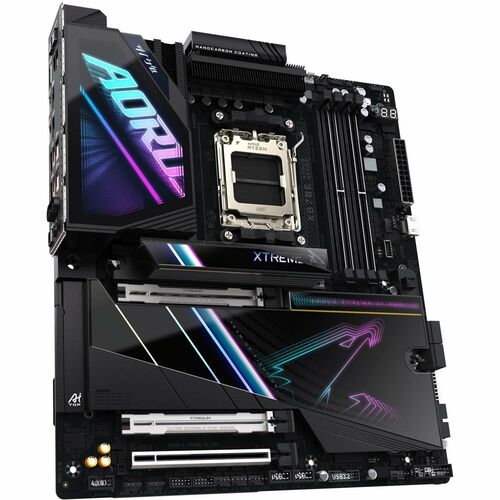

Gigabyte X870E A XTREME AI TOP GIGABYTE X870E A XTREME AI TOP X870EAXTREMEAITOP
$819.00
X870E A XTREME AI TOP GIGABYTE X870E A XTREME AI TOP
Description
GIGABYTE Ultra Durable X870E AORUS XTREME AI TOP Gaming Desktop Motherboard – AMD X870E Chipset – Socket AM5 – Extended ATX – Ryzen 9, Ryzen 7 Processor Supported – 256 GB DDR5 SDRAM Maximum RAM – DIMM, UDIMM – 4 x Memory Slots – Gigabit Ethernet – 2.5Gigabit Ethernet – IEEE 802.11 a/b/g/n/ac/ax/be – HDMI – DisplayPort – 4 x SATA Interfaces
Features
- Ryzen 9 processors supported for enhanced, dependable system performance with maximum usability
- DDR5 SDRAM slot for convenient installation of memory
- Supported 0 RAID levels provide data reliability and fault tolerance
- Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11 a/b/g/n/ac/ax/be wireless standard support
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Extended ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- With 2 USB 2.0 ports, connect devices for a quick data movement
Tech Specs
| Audio | |
|---|---|
| Audio Channels | 5.1 |
| Basic | |
| Product Type | Gaming Desktop Motherboard |
| Maximum Memory Supported | 256 GB |
| Form Factor | Extended ATX |
| Processor Supported | Ryzen 7 |
| Processor Supported | Ryzen 9 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket AM5 |
| Brand Name | GIGABYTE |
| Memory Technology | DDR5 SDRAM |
| Chipset Manufacturer | AMD |
| Chipset Model | X870E |
| Number of Memory Slots | 4 |
| Graphics Controller Model | Radeon Graphics |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 4 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 3 |
| HDMI | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 10 |
| Total Number of Onboard USB Ports | 9 |
| Total Number of PCI Express Slots | 3 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Total Number of Expansion Slots | 3 |
| Number of M.2 Interfaces | 4 |
| 2.5Gigabit Ethernet | Yes |
| AI-powered | Yes |
| General Information | |
| Product Type | Gaming Desktop Motherboard |
| Manufacturer Part Number | X870EAXTREMEAITOP |
| Manufacturer Website Address | http://www.gigabyte.us |
| Manufacturer | GIGABYTE Technology, Inc |
| Product Model | X870E AORUS XTREME AI TOP |
| Product Name | Ultra Durable X870E AORUS XTREME AI TOP Gaming Desktop Motherboard |
| Product Line | Ultra Durable |
| Brand Name | GIGABYTE |
| I/O Controller | |
| RAID Levels | 5 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| RAID Levels | 10 |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express Standard | PCI Express 4.0 |
| Total Number of PCI Express Slots | 3 |
| Total Number of Expansion Slots | 3 |

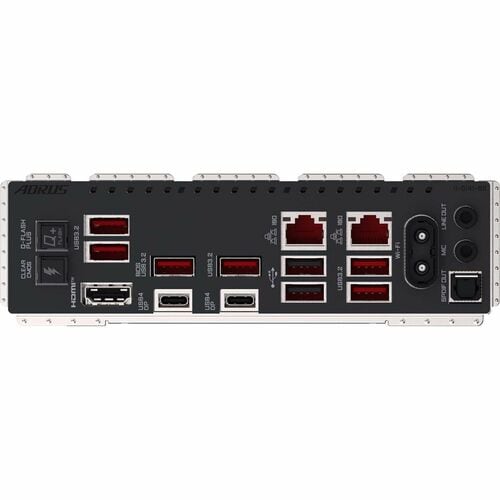

| Interfaces/Ports | |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version |
|
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 6 |
| Number of USB4 Ports | 2 |
| Memory | |
| Error Checking | ECC |
| Maximum Memory | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 7950 MHz |
| Memory Speed Supported | 8000 MHz |
| Memory Speed Supported | 8200 MHz |
| Memory Speed Supported | 8266 MHz |
| Memory Speed Supported | 8400 MHz |
| Memory Speed Supported | 8600 MHz |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 5200 MHz |
| Memory Speed Supported | 5600 MHz |
| Memory Speed Supported | 5800 MHz |
| Memory Speed Supported | 6000 MHz |
| Memory Speed Supported | 6200 MHz |
| Memory Speed Supported | 6400 MHz |
| Memory Speed Supported | 6600 MHz |
| Memory Speed Supported | 6800 MHz |
| Memory Speed Supported | 7900 MHz |
| Memory Speed Supported | 7800 MHz |
| Memory Speed Supported | 7600 MHz |
| Memory Speed Supported | 7400 MHz |
| Memory Speed Supported | 7000 MHz |
| Memory Speed Supported | 8800 MHz |
| Memory Speed Supported | 7200 MHz |
| Network & Communication | |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Bluetooth Standard | Bluetooth 5.3 |
| 2.5Gigabit Ethernet | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 4 |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 12″ |
| Depth | 10.6″ |
| Processor & Chipset | |
| Processor Supported | Ryzen 9 |
| Processor Supported | Ryzen 7 |
| Processor Socket | Socket AM5 |
| Chipset Manufacturer | AMD |
| Chipset Model | X870E |
| Technical Information | |
| AI-powered | Yes |
| Video | |
| Graphics Controller Model | Radeon Graphics |
| Onboard Video | CPU Dependent Video |
