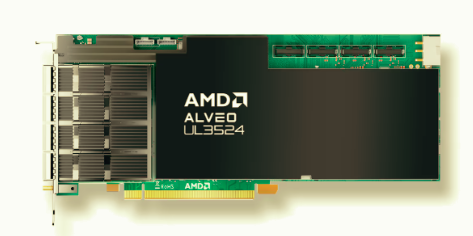

ALVEO UL3524 ACCELERATOR ULL DATACENTER CARD A-UL3524-P16G-PQ-G – A-UL3524-P16G-PQ-G

FPGA Resources787K Look-up Tables (LUTS)

1,722K registers

1,680 DSP Slices

256 Mb embedded memory (76 Mb Block RAM, 180 Mb UltraRAM)

Transceivers8 GTYP transceivers (32.75 Gb/s)

64 GTF ultra-low latency

On-Board Memory16 GB DDR4, 64b +8b ECC at 2666 MT/s

72 MB, 2×288 Mb QDR I+, 550 Mhz

Interfaces4x QSFP-DD (32 x 10/25G ports)

Expansion PortsFour ARF6 supports additional 32×10/25G ports to connect multiple cards

Two Pico-Clasp connectors for sideband

Clock Synchronization1PPS In

Configuration and Debug2 Gbit QSPI, JAG over Micro USB

PCle® InterfacePCle Gen4 x8 (x16 physical connector)

Form FactorFull-height, ¾ Length (FHAL)

Single slot

Power and Thermal180W Electrical

125W TDP

Passive cooling
