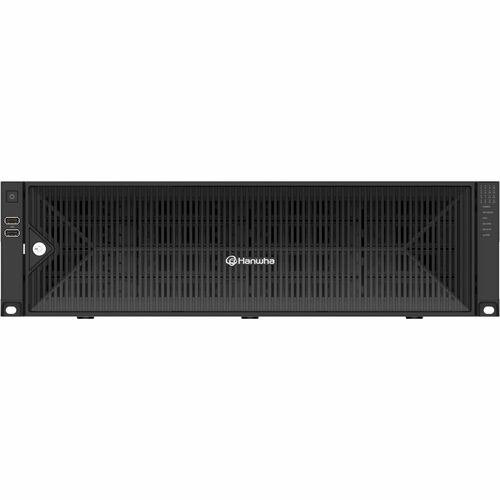

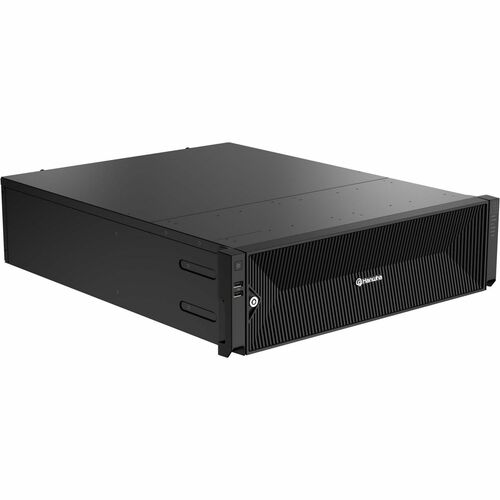

HANWHA 64 CH NVR 80TB 64 CH NVR 80TB XRN-6420DB4-80TB
Original price was: $17,920.00.$11,485.00Current price is: $11,485.00.
64 CH NVR 80TB 64 CH NVR 80TB
Description
Hanwha 64CH NVR with 12th gen. Intel Processor – 80 TB HDD – Network Video Recorder – HDMI – 4K Recording
Features
- 64CH, 32MP resolution
- SATA 16 HDD Bays (up to 160TB)
- Up to 520Mbps recording / transmission bandwidth
- Easy Channel/Event/Alarm configuration
- Virtual Channel View
- Dynamic layout
- Built-in Support for Web Management (up to 100)
- Compatible with Wisenet Viewer, Wisenet mobile
- NDAA compliant and TPM integrated
- Manual event support
Tech Specs
| Basic | |
|---|---|
| Product Type | Video Surveillance Station |
| Connectivity Technology | Wired |
| Maximum Resolution | 32MP |
| Brand Name | Hanwha |
| Hard Drive Capacity | 80 TB |
| Ethernet | Yes |
| USB | Yes |
| Total Number of Channels | 64 |
| System Components | Network Video Recorder |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| General Information | |
| Product Type | Video Surveillance Station |
| Manufacturer Part Number | XRN-6420DB4-80TB |
| Manufacturer Website Address | http://www.hanwha.com |
| Manufacturer | Hanwha Group |
| Product Model | XRN-6420DB4 |
| Product Name | 64CH NVR with 12th gen. Intel Processor |
| Product Series | X |
| Brand Name | Hanwha |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of USB Ports | 4 |
| USB Standard | USB 2.0/3.0 |
| Total Number of Audio Out Ports | 1 |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Physical Characteristics | |
| Height | 5.2″ |
| Width | 17.3″ |
| Depth | 22.5″ |
| NVR Weight | 33.29 lb |
| Power Description | |
| Power Source | AC Supply |
| Power Consumption | 265 W |
| Software | |
| Operating System Supported | macOS 13.5.2 or Higher |
| Operating System Supported | Windows 10 or Higher |
| Operating System Supported | Linux |
| Storage | |
| Hard Drive Capacity | 80 TB |
| Technical Information | |
| Recording Formats | 4K |
| Connectivity Technology | Wired |
| HD Recording | Yes |
| Total Number of Channels | 64 |
| System Components | Network Video Recorder |
| Video | |
| Video Formats | Motion JPEG |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Maximum Resolution | 32MP |
| Maximum Frame Rate | 30 fps |
